Description
LED COB STRIPS CONNECTORS
Technical Parameters, 8mm Cable to strips quick connector.

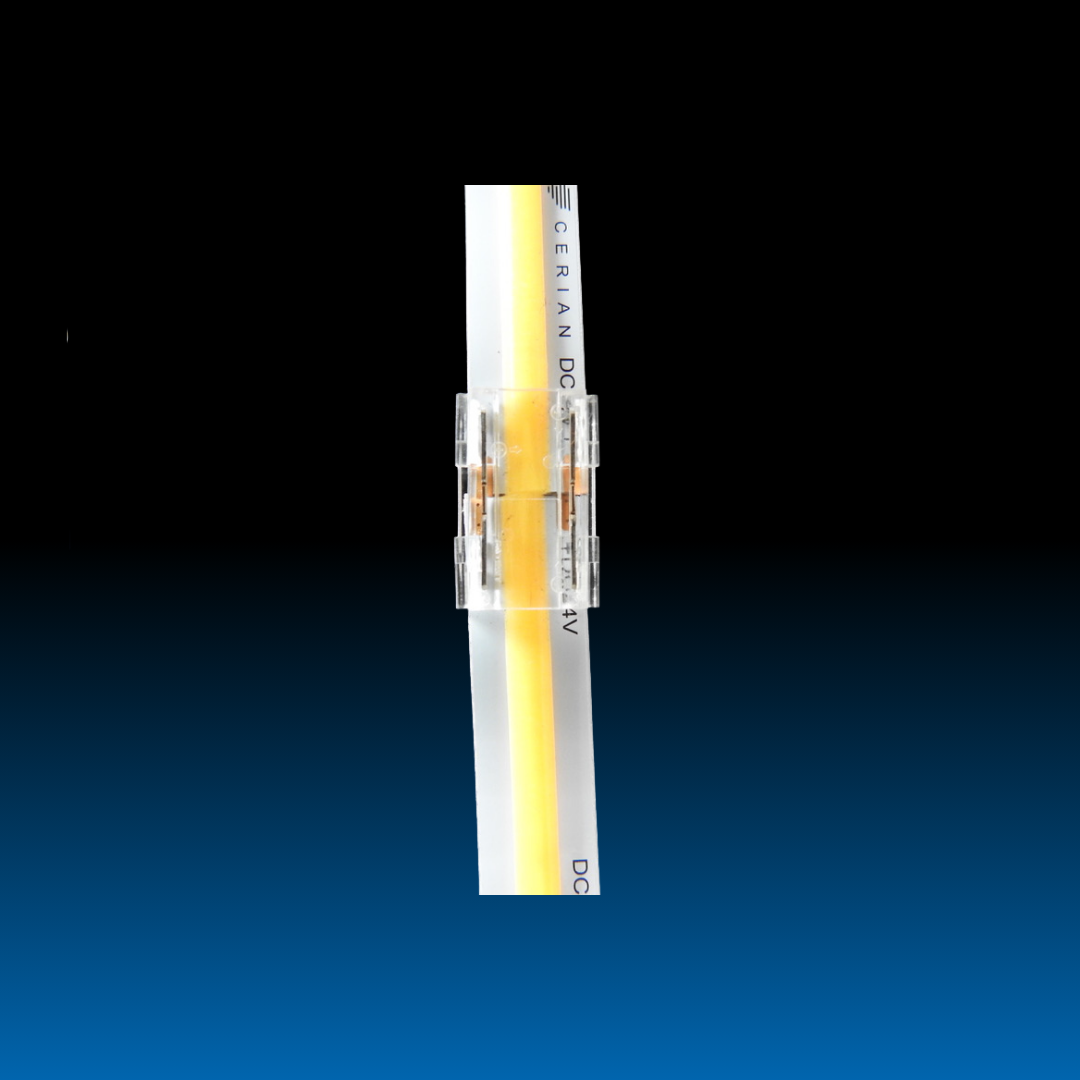

Crystal LED strip connector is a transparent PC material connector, mainly suitable for IP20 COB & SMD strip with matching pads. It has the characteristics of reliable connection, invisible seamless lighting, perfect solution for aluminum profile application, and DIY connection without stripping.
Product parameters
- 1. Rated Current: 6A Max / 20PCs a bag

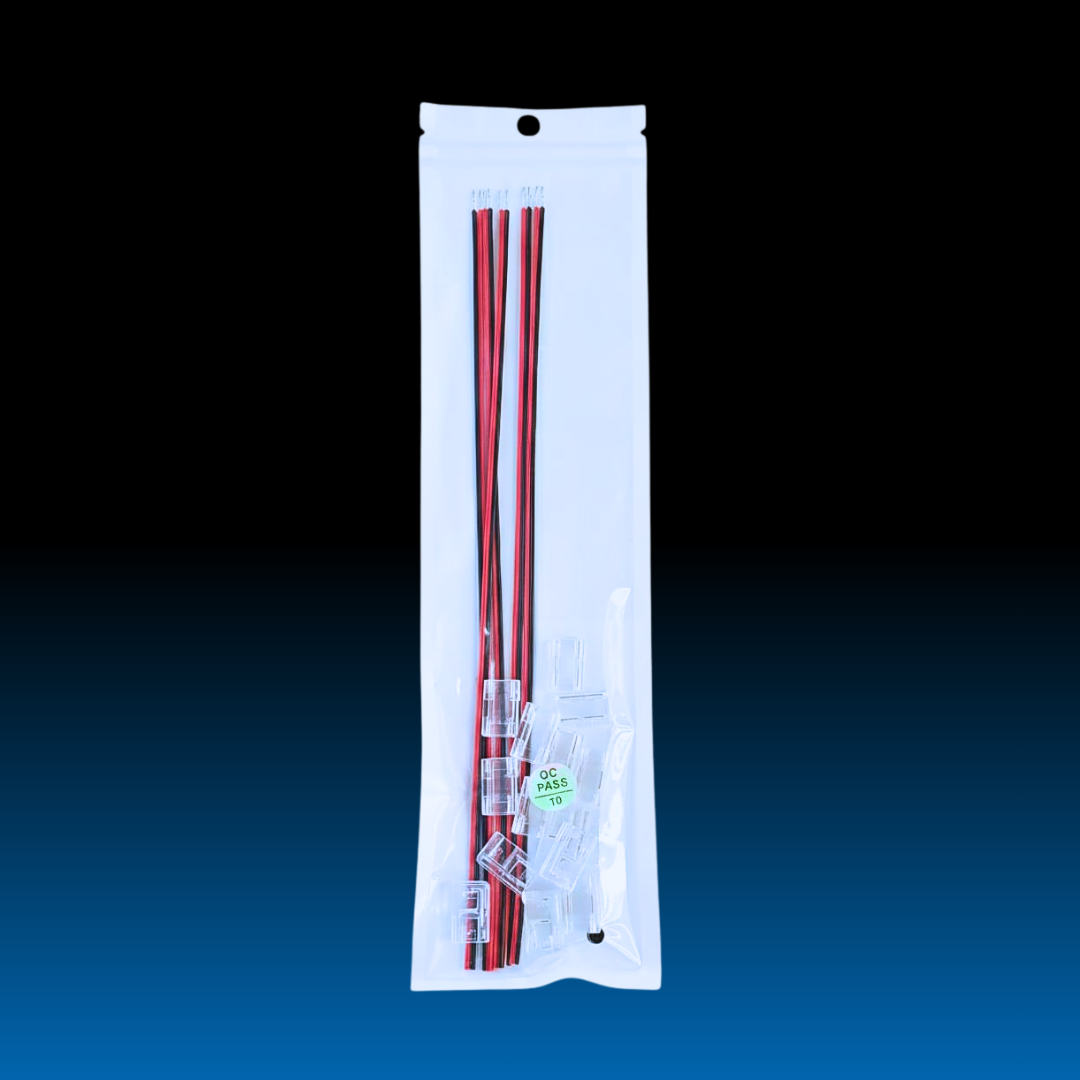

- 5 PCs Cables / 5 PCs Corners / 10 PCs Straights
- 2. Rated voltage: 5V/9V/12V/18V/24V/36V/48V
- 3. Withstand voltage: 500V
- 4. Temperature resistance: 105°C
- 5. Working temperature: -20°C ~ +80°C
- 6. Salt spray test: neutral salt spray 24H
- 7. Allowable humidity: 15%~90%
- 8. Applicable strip specifications: IP20 SMD & COB strip
-
Before purchasing connectors, please ensure that the led strip meets the following wiring requirements. Customer complaints caused by PCB wiring problems are not covered by the warranty.
