Description

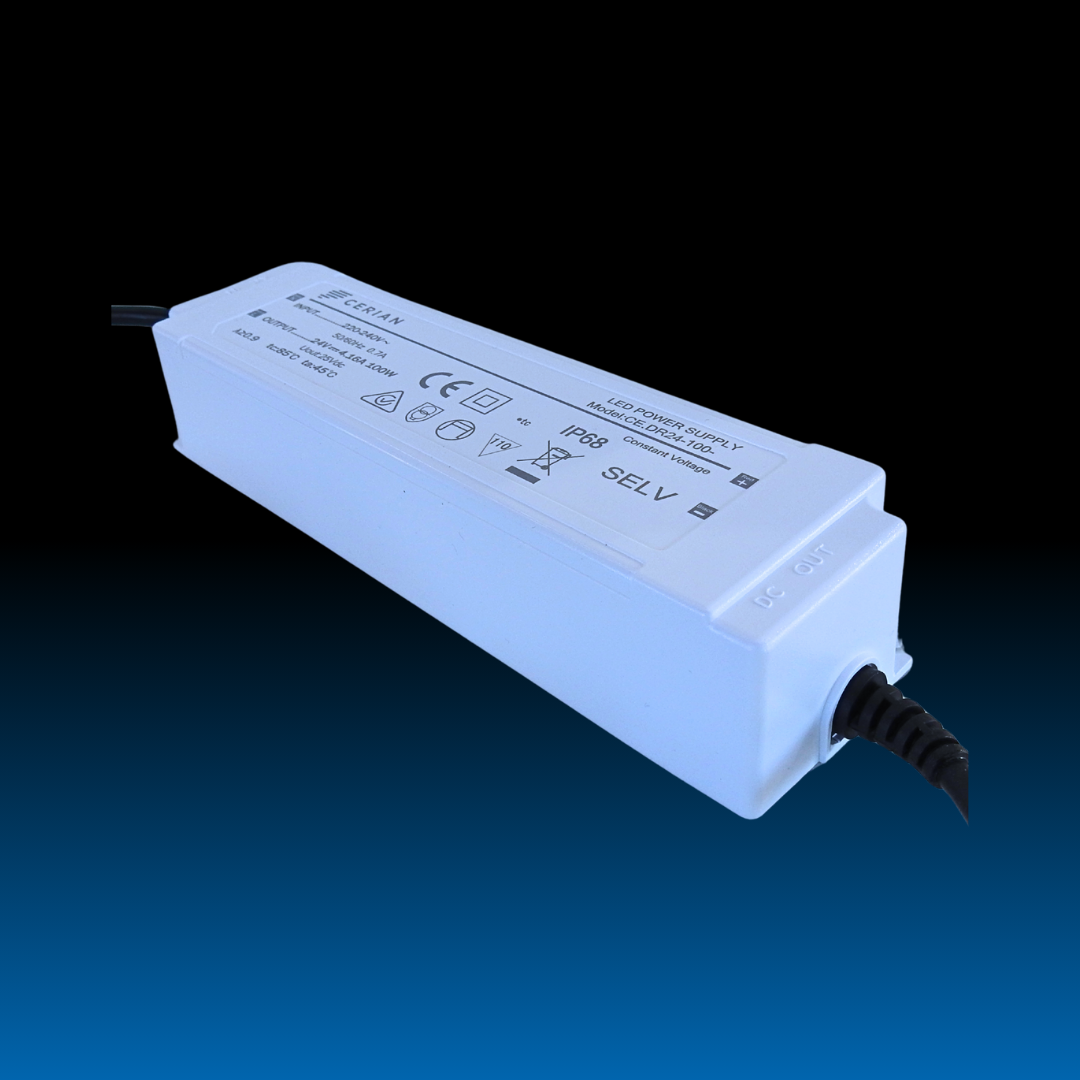

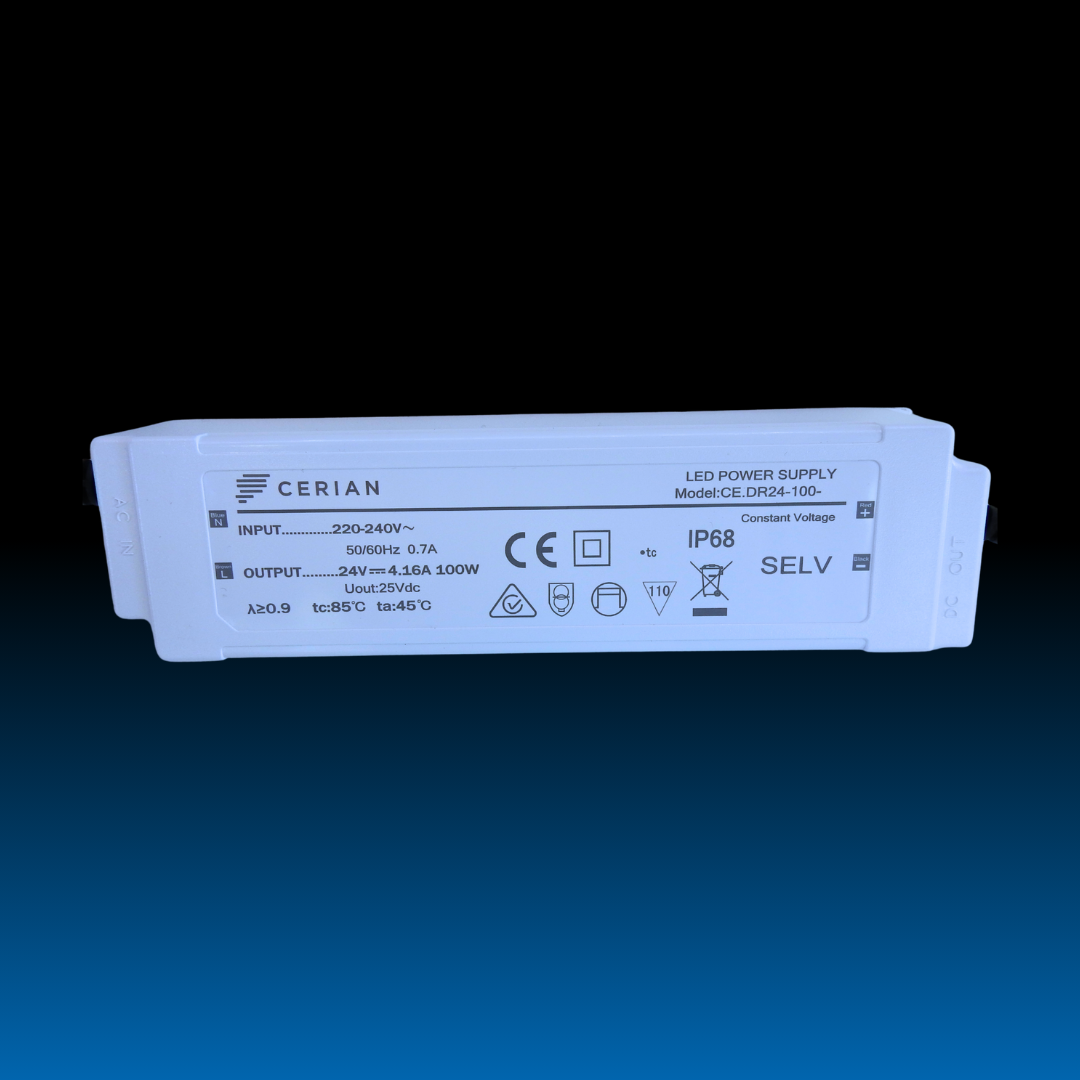

CERIAN 100W 24V LED Driver – IP68 Constant Voltage Power Supply
The CERIAN 100W 24V DC constant-voltage LED driver supplies compatible 24V LED strip lighting and other suitable low-voltage LED products. Model CE.DR24-100-IP68 is a non-dimmable power supply designed for stable output in appropriately installed lighting systems.
Technical Specifications
- Brand: CERIAN
- Model: CE.DR24-100-IP68
- Rated output power: 100W maximum
- Output: 24V DC constant voltage
- Rated output current: approximately 4.17A
- Input: 220–240V AC, 50/60Hz
- Ingress protection: IP68
- Dimming: Non-dimmable
- Dimensions: 190 × 43 × 35mm
- Protection: Short-circuit protection as stated in the existing product specification
- Lead: Existing product information describes a 1200mm flex with Australian two-pin plug; confirm supplied configuration before installation
How to Choose the Correct LED Driver
Check that your LED strip requires 24V DC constant voltage, then multiply its rated power per metre by the installed length. For example, 4 metres of 10W/m LED strip has a nominal load of 40W. Choose a driver with sufficient spare capacity for the application, considering manufacturer guidance, installation temperature, cable losses and any controller load. The connected load must not exceed the driver’s rated output.
This 100W model provides a rated maximum of 4.17A at 24V DC. For RGB or dimmable strips, use a compatible controller or approved control system between the driver and the lighting where required; the driver itself is non-dimmable.
Installation and Environmental Protection
IP68 installation: The driver has an IP68 rating, but its suitability for a specific wet or outdoor installation depends on the manufacturer’s stated immersion conditions and the protection of plugs, cable joints and connections. Do not assume that an attached mains plug or connector is IP68-rated.
Allow appropriate ventilation and heat management, follow the manufacturer’s mounting instructions, and check electrical compatibility and required safety approvals. Have mains wiring and fixed electrical installation work performed by a licensed electrician.
Related LED Lighting Products
Browse the LED driver range, LED strip lights and LED controllers. Match voltage, wattage, current and environmental protection before ordering.
CERIAN 24V LED Driver – FAQs
What LED strips are compatible?
Choose 24V DC constant-voltage LED strips and check that the total installed load is within this driver’s rated output.
How do I select driver wattage?
Multiply the strip’s watts per metre by the installed length, then allow suitable spare capacity and consider voltage drop on longer runs.
Is the IP68 driver suitable for wet areas?
Verify the manufacturer’s IP68 conditions, including permitted immersion depth and duration. Protect all mains wiring, joins and connectors for the installation environment.
What should installers check?
Confirm input and output ratings, cable sizing, ventilation and suitable mounting. Fixed mains wiring should be installed by a licensed electrician.
