Description

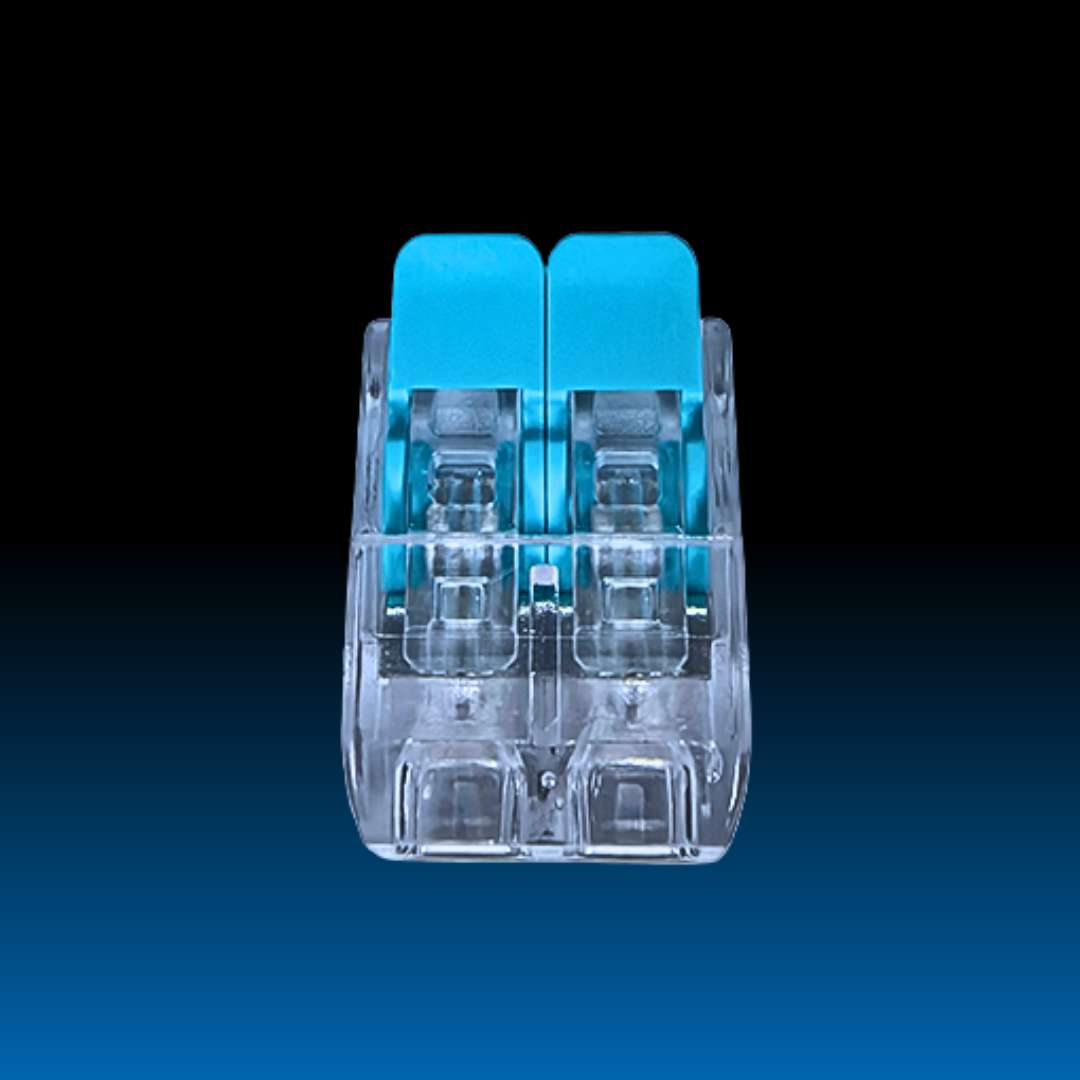

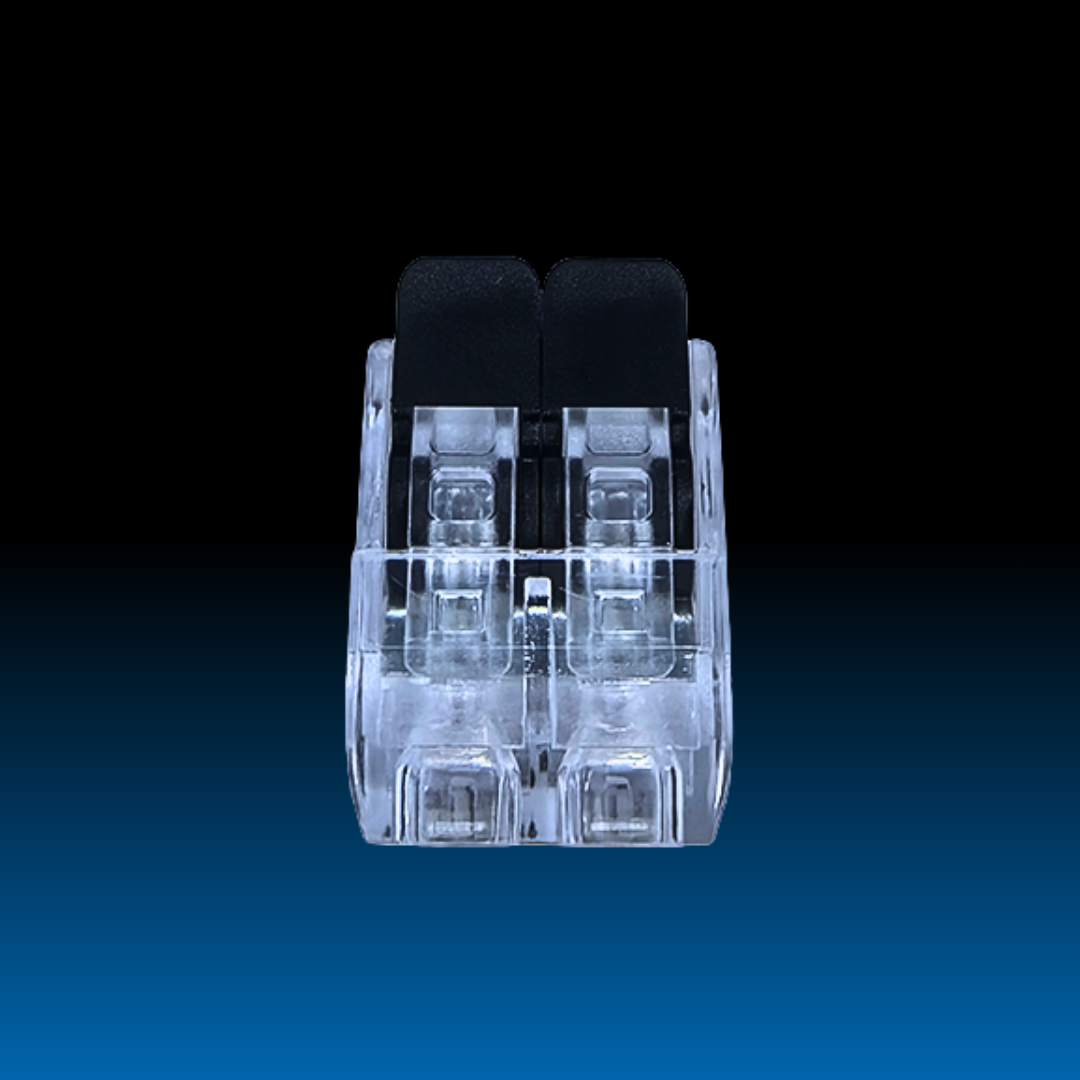

Certified Lighting Wire Connector – Safe & Reliable Internal Connection Our high-performance wire connector is designed for secure internal electrical and lighting circuit connections , delivering long-term reliability, safety, and ease of installation. Manufactured with precision materials and compliant with international safety standards, it is ideal for professional lighting and electrical applications.
Certifications & Compliance
Passed UL & CUL , ENEC , CQC , UKCA , and CE safety certifications
Complies with EN 60998-2-2:2004 standards
Key Features
Compact & Unique Design – Small footprint with a modern, space-saving structureEasy Installation – Button-type design allows fast wiring and secure clampingStable & Reliable Performance – Ensures stable electrical conduction and long-term safetyHigh-Conductivity Material – Made from high-precision imported copper for excellent conductivity and contact performanceFlexible Wiring Compatibility – Securely clamps wires of different specifications without loosening after installation
Technical Specifications
Wire Range: 0.5–6.0 mm²Colour Red & Black & Blue
Single hard wire
Multi-strand hard wire
Multi-strand flexible wire
20–10 AWG
Dimension 85x85x70mm
Stripping Length: 14 mm (full strip)
Applications
Internal connection of complete electrical equipment
Internal wiring of lighting circuits and power
Suitable for residential, commercial, and professional lighting systems
Item Description – Lever Wire Connector Your Benefits
Feature
Description
Ease of Use
Pull lever up, insert conductor, and push lever back down
Wire Options
Available in 2-wire, 3-wire, and 5-wire versions
Wide Compatibility
Suitable for all conductor types from 0.5–6.0 mm²
Time Saving
Faster installation for installers and device manufacturers
High Power Support
Suitable for devices with higher power consumption
Long Cable Runs
Safe installation with larger conductor cross-sections
Standard Mounting
Mounting carrier conforms to installation standards
Customisation
Custom mounting carriers available
Connection Specifications
Parameter
Specification
Actuation Type
Lever
Connectable Conductor Material
Copper
Nominal Cross-Section
6 mm²
Solid Conductor
0.5–6.0 mm² / 20–10 AWG
Stranded Conductor
0.5–6.0 mm² / 20–10 AWG
Fine-Stranded Conductor
0.5–6.0 mm² / 20–10 AWG
Strip Length
12–14 mm / 0.47–0.55 in
Environmental Requirements
Parameter
Specification
Ambient Temperature (Operation)
+85 °C
Continuous Operating Temperature
105 °C
Temperature Rating
T85 (per EN 60998-2-2:2004)
